2018/10/21

Micropod 2 Programmed Ignition FOBIKs to Jeep Wrangler 2018

Micropod 2 with wiTech software is able to program a new key to Jeep Wrangler 2018.

Car: 2018 JEEP WRANGLER 3.5L V6 24V WT ENGINE UPG I W/ESS
Jeep-Wrangler-2018
Here you go….

In wiTech software interface,

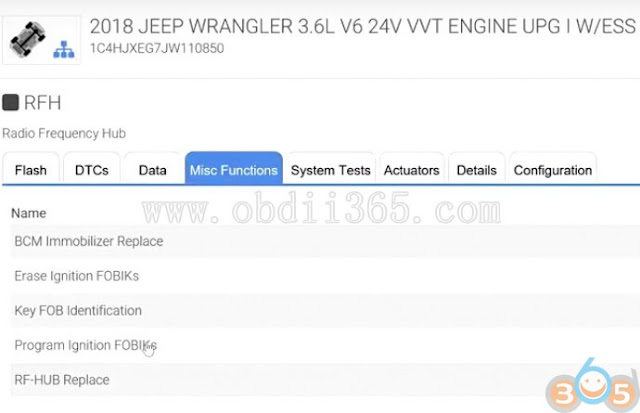

Select RFH – Misc Functions – Program Ignition FOBIKs
micropod2-Jeep-Wrangler-2018-1

micropod2-Jeep-Wrangler-2018-2

micropod2-Jeep-Wrangler-2018-3

micropod2-Jeep-Wrangler-2018-4
Miropod2 starts to program ignition fobik(s)
Just do as what displayed in the interface
Turn ignition off
micropod2-Jeep-Wrangler-2018-5
Enter the vehicle pin.
The pin can be found by authorized personnel on dealerconnect under Parts – Reference Library – Key Code, On this vehicle, the pin value expires after 12 hours and must be obtained new from dealerconnect every day it is needed
micropod2-Jeep-Wrangler-2018-6
Verify the pin
micropod2-Jeep-Wrangler-2018-7
Press and hold the stop/start button with the top of the fobik being programmed
Continue depressing the stop/start button until the successful message is received
micropod2-Jeep-Wrangler-2018-8

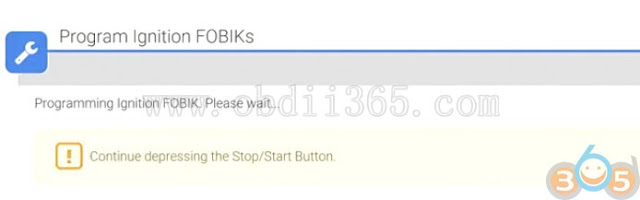

Programming ignition fobik
micropod2-Jeep-Wrangler-2018-9
Programming the ignition fobik successful
Continue to program another fobik or close
micropod2-Jeep-Wrangler-2018-10
Press and hold the stop/start button with the top of the fobik being programmed
Continue depressing the stop/start button until the successful message is received
micropod2-Jeep-Wrangler-2018-11
Reading updated key information
micropod2-Jeep-Wrangler-2018-12
Programming the ignition fobik successful
Test the key and confirm its functionality
micropod2-Jeep-Wrangler-2018-13
Read and clear DTCs
micropod2-Jeep-Wrangler-2018-14
micropod2-Jeep-Wrangler-2018-15
micropod2-Jeep-Wrangler-2018-16
micropod2-Jeep-Wrangler-2018-17
Done!
